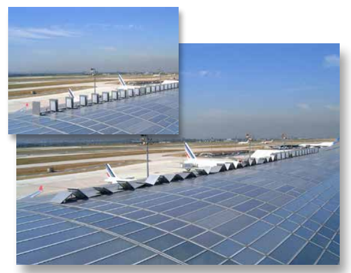

GLASS TYPE VENTILATOR

A roof vent made up of 2 leaves that open opposite to each other. Effective solution for smoke control and daily ventilation, and also enables overhead lighting. It can be easily adapted to all types of architecture with its concealed power system (incorporated into the profile).

Material Anodized or RAL painted finishes (glaze or opaque insulated)
Impact Resistance 1,200 Joules (with grilles)
Reliability Class Re 1000 (+10,000) in pneumatic mode
Re 1000 in electric mode
Air Flow Performances Cv 0.5 to 0.68 depending on dimensions and options
Static Wind Resistance WL= 1500 Pa
Low Temperature T(-15)

T(00)
Temperature Elevation B=300°C
Reaction to Fire dependent on infill
Uw 0.39 to 0.67 W/m2 K with opaque thermal complexes
1.14 to 5.7 W/m2 K for glazed products (depending on Ug of infill)
Standards & Codes EN12101-2
NF-DENFC
